INSOCOAT Cylindrical Roller Bearing

An Insulated bearing is a standard bearing that has the external surfaces of its inner or outer ring plasma-sprayed with an aluminium oxide to form a coating. The coating is sealed with a resin to protect against the conductive effects of water and moisture.

The basic coating can withstand voltages up to 1 000 V DC. However, coatings to withstand voltages up to 2 000, or even 3 000 V DC, can be supplied on request.

Insulated bearings with a coated outer ring

Insulated bearings typically have the external surfaces of the outer ring coated with aluminium oxide. These bearings are identified by the designation suffix VL0241.

Insulated bearings that have the external surfaces of the inner ring coated are identified by the designation suffix VL2071. These bearings provide enhanced protection against high frequency electric currents due to the smaller coated surface area of the inner ring compared to the outer ring.

Designation Principal dimensions Basic load ratings Speed ratings
  D(mm) d(mm) B(mm) dynamic static Reference speed Limiting speed
NU 1010 ECP/C3VL0241 50 80 16 46.8 56 9 500 9 500
NU 210 ECM/C3VL0241 50 90 20 73.5 69.5 8 500 9 000
NU 310 ECM/C3VL0241 50 110 27 127 112 6 700 8 000
NU 1011 ECML/C3VL0241 55 90 18 57.2 69.5 8 500 13 000
NU 1011 ECP/C3VL0241 55 90 18 57.2 69.5 8 500 8 500
NU 211 ECM/C3VL0241 55 100 21 96.5 95 7 500 8 000
NU 311 ECM/C3VL0241 55 120 29 156 143 6 000 7 000
NU 1012 ECP/C3VL0241 60 95 18 58.3 73.5 8 000 8 000
NU 1012 ML/C3VL0241 60 95 18 37.4 44 8 000 13 000
NU 212 ECM/C3VL0241 60 110 22 108 102 6 700 7 500
NU 312 ECM/C3VL0241 60 130 31 173 160 5 600 6 700
NU 1013 ECP/C3VL0241 65 100 18 62.7 81.5 7 500 7 500
NU 213 ECM/C3VL0241 65 120 23 122 118 6 300 6 700
NU 313 ECM/C3VL0241 65 140 33 212 196 5 300 6 000
NU 1014 ECM/C3VL0241 70 110 20 76.5 93 7 000 7 000
NU 1014 ECP/C3VL0241 70 110 20 76.5 93 7 000 7 000
NU 214 ECM/C3VL0241 70 125 24 137 137 6 000 6 300

Previous

nothing

INSOCOAT Deep Groove Ball Bearings

Next

Previous

INSOCOAT Deep Groove Ball Bearings

Next

INSOCOAT Deep Groove Ball Bearings

YOUR PREFERRED SUPPLIER OF INDUSTRIAL SOLUTIONS

SUBMIT

Related Products

图片名称
RA Series Crossed Roller Bearing

RA Series Crossed Roller Bearing

Model RA-Separable Outer Ring Type for Inner Ring Rotation A compact type similar to model RB with the thinnest possible inner and outer rings. RA5008 RA6008 RA7008 RA8008 RA9008 RA 10008 RA 11008 RA 12008 RA 13008 RA 14008 RA 15008 RA 16013 RA 17013 RA 18013 RA 19013 RA 20013 RA5008C RA6008C RA7008C RA8008C RA9008C RA 10008C RA 11008C RA 12008C RA 13008C RA 14008C RA 15008C RA 16013C RA 17013C RA 18013C RA 19013C RA 20013C

图片名称

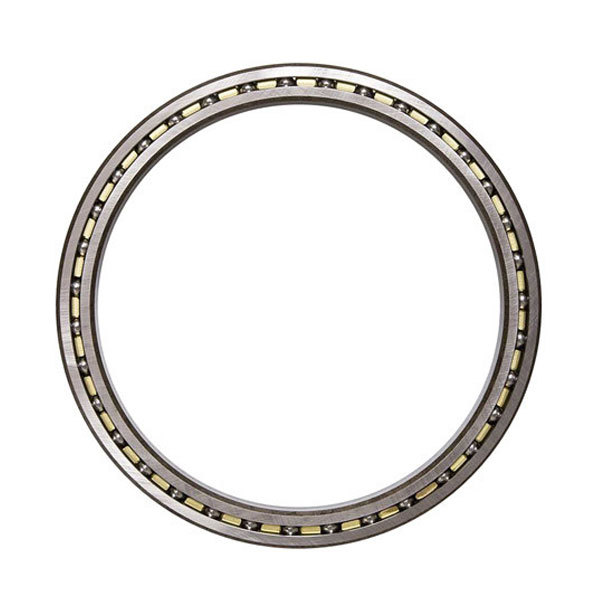

Thin Section Open Bearings

Thin Section Open Bearings

Kenworth Bearing meet the most exacting specifications of the aerospace and defense,  KG110AR0 KG120AR0 KG140AR0 KG160AR0 KG180AR0 KG200AR0 KG220AR0 KG250AR0 KG300AR0 KG350AR0 KG400AR0 KG040CP0 KG042CP0 KG045CP0 KG047CP0 KG050CP0 KG055CP0 KG060CP0 KG065CP0 KG070CP0 KG075CP0 KG080CP0 KG090CP0 KG100CP0 KG110CP0 KG120CP0 KG140CP0 KG160CP0 KG180CP0 KG200CP0 KG220CP0 KG250CP0 KG300CP0 KG350CP0 KG400CP0 KG040XP0 KG042XP0 KG045XP0 KG047XP0 KG050XP0 KG055XP0 KG060XP0 KG065XP0 KG070XP0 KG075XP0 KG080XP0 KG090XP0 KG100XP0 KG110XP0 KG120XP0 KG140XP0 KG160XP0 KG180XP0 KG200XP0 KG220XP0 KG250XP0 KG300XP0 KG350XP0 KG400XP0

图片名称

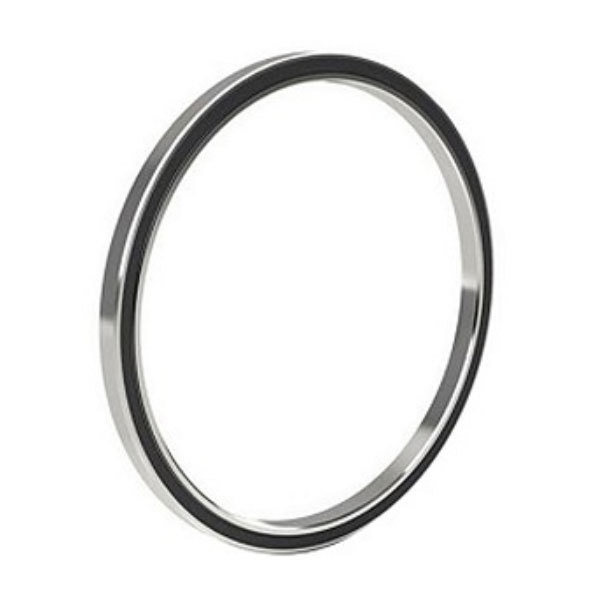

Thin Section Sealed Bearings

Thin Section Sealed Bearings

Reali-Slim thin section four-point contact ball bearing with seals or shields JHA10CL0 JHA15CL0 JHA17CL0 JHA10XL0 JHA15XL0 JHA17XL0 JA020CP0 JA025CP0 JA030CP0 JA035CP0 JA040CP0 JA042CP0 JA045CP0 JA047CP0 JA050CP0 JA055CP0 JA060CP0 JA065CP0 JA070CP0 JA075CP0 JA020XP0 JA025XP0 JA030XP0 JA035XP0 JA040XP0 JA042XP0 JA045XP0 JA047XP0 JA050XP0 JA055XP0 JA060XP0 JA065XP0 JA070XP0 JA075XP0 JB020CP0 JB025CP0 JB030CP0 JB035CP0 JB040CP0 JB042CP0 JB045CP0 JB047CP0 JB050CP0 JB055CP0 JB060CP0 JB065CP0 JB020XP0 JB025XP0 JB030XP0 JB035XP0 JB040XP0 JB042XP0 JB045XP0 JB047XP0 JB050XP0 JB055XP0 JB060XP0 JB065XP0 JU040CP0 JU042CP0 JU045CP0 JU047CP0 JU050CP0 JU055CP0 JU060CP0 JU065CP0 JU070CP0 JU075CP0 JU080CP0 JU085CP0 JU090CP0 JU100CP0 JU110CP0 JU120CP0 JU040XP0 JU042XP0 JU045XP0 JU047XP0 JU050XP0 JU055XP0 JU060XP0 JU065XP0 JU070XP0 JU075XP0 JU080XP0 JU085XP0 JU090XP0 JU100XP0 JU110XP0 JU120XP0 JG070CP0 JG075CP0 JG080CP0 JG090CP0 JG100CP0 JG110CP0 JG120CP0 JG140CP0 JG160CP0 JG180CP0 JG200CP0 JG220CP0 JG250CP0 JG300CP0 JG350CP0 JG400CP0 JG070XP0 JG075XP0 JG080XP0 JG090XP0 JG100XP0 JG110XP0 JG120XP0 JG140XP0 JG160XP0 JG180XP0 JG200XP0 JG220XP0 JG250XP0 JG300XP0 JG350XP0 JG400XP0

图片名称

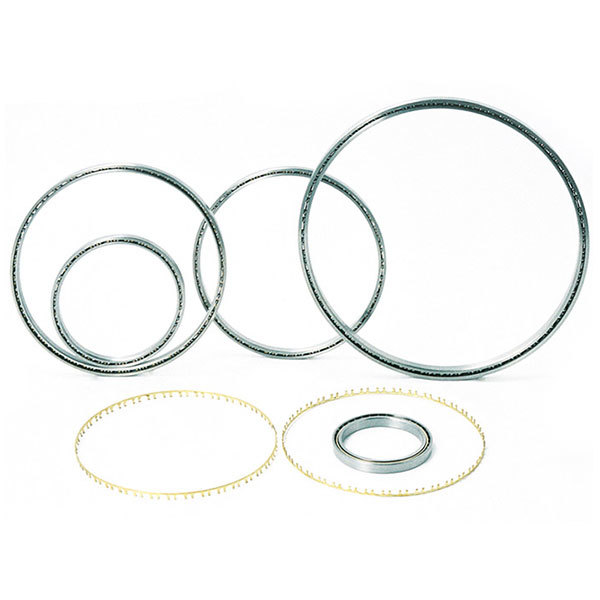

Reali Slim Thin Section Metric Bearings
