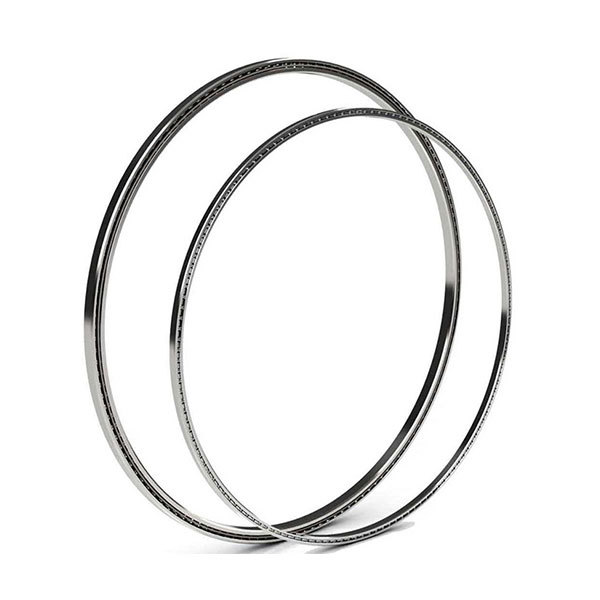

Thin Section Open Bearings
Kenworth Bearing meet the most exacting specifications of the aerospace and defense, KG110AR0 KG120AR0 KG140AR0 KG160AR0 KG180AR0 KG200AR0 KG220AR0 KG250AR0 KG300AR0 KG350AR0 KG400AR0 KG040CP0 KG042CP0 KG045CP0 KG047CP0 KG050CP0 KG055CP0 KG060CP0 KG065CP0 KG070CP0 KG075CP0 KG080CP0 KG090CP0 KG100CP0 KG110CP0 KG120CP0 KG140CP0 KG160CP0 KG180CP0 KG200CP0 KG220CP0 KG250CP0 KG300CP0 KG350CP0 KG400CP0 KG040XP0 KG042XP0 KG045XP0 KG047XP0 KG050XP0 KG055XP0 KG060XP0 KG065XP0 KG070XP0 KG075XP0 KG080XP0 KG090XP0 KG100XP0 KG110XP0 KG120XP0 KG140XP0 KG160XP0 KG180XP0 KG200XP0 KG220XP0 KG250XP0 KG300XP0 KG350XP0 KG400XP0
Email: sales@kenworthbearing.com
Keyword:
Category:
Thin Section Bearings
Thin Section Open Bearings
Kenworth Bearing meet the most exacting specifications of the aerospace and defense, commercial aerospace, heavy equipment, industrial machinery, medical systems, mining, oil and gas, robotics, semiconductor, solar, and wind markets.
We supply Kaydon Reali-Slim® and Ultra-Slim® bearings which are available in a wide variety of materials, separator options, cross-sections, internal fit up choices, lubricants, corrosion resistance options and contact angles. With bore sizes from 3/4 inch to 40 inches (19 mm to 1 m), we provides the largest range of thin section bearings.
-Thin Section Open Bearings
-Thin Section Sealed Bearings
-Reali Slim Thin Section Metric Bearings
-Ultra Slim Extra Thin Section Bearings
The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and light weight of the product. The variety of products expands its scope of use.
| Bearing Number | BEARING TYPE | Bore Dia d |
Outside Dia D |
Width B |
Seal Type | Cage Material |
| KG110AR0 | Angular | 11.000" | 13.000" | 1" | Open | Brass |
| KG120AR0 | Angular | 12.000" | 14.000" | 1" | Open | Brass |
| KG140AR0 | Angular | 14.000" | 16.000" | 1" | Open | Brass |
| KG160AR0 | Angular | 16.000" | 18.000" | 1" | Open | Brass |
| KG180AR0 | Angular | 18.000" | 20.000" | 1" | Open | Brass |
| KG200AR0 | Angular | 20.000" | 22.000" | 1" | Open | Brass |
| KG220AR0 | Angular | 22.000" | 24.000" | 1" | Open | Brass |
| KG250AR0 | Angular | 25.000" | 27.000" | 1" | Open | Brass |
| KG300AR0 | Angular | 30.000" | 32.000" | 1" | Open | Brass |
| KG350AR0 | Angular | 35.000" | 37.000" | 1" | Open | Brass |
| KG400AR0 | Angular | 40.000" | 42.000" | 1" | Open | Brass |
| KG040CP0 | Radial | 4.000" | 6.000" | 1" | Open | Brass |
| KG042CP0 | Radial | 4.250" | 6.250" | 1" | Open | Brass |
| KG045CP0 | Radial | 4.500" | 6.500" | 1" | Open | Brass |
| KG047CP0 | Radial | 4.750" | 6.750" | 1" | Open | Brass |
| KG050CP0 | Radial | 5.000" | 7.000" | 1" | Open | Brass |
| KG055CP0 | Radial | 5.500" | 7.500" | 1" | Open | Brass |
| KG060CP0 | Radial | 6.000" | 8.000" | 1" | Open | Brass |
| KG065CP0 | Radial | 6.500" | 8.500" | 1" | Open | Brass |
| KG070CP0 | Radial | 7.000" | 9.000" | 1" | Open | Brass |
| KG075CP0 | Radial | 7.500" | 9.500" | 1" | Open | Brass |
| KG080CP0 | Radial | 8.000" | 10.000" | 1" | Open | Brass |
| KG090CP0 | Radial | 9.000" | 11.000" | 1" | Open | Brass |
| KG100CP0 | Radial | 10.000" | 12.000" | 1" | Open | Brass |
| KG110CP0 | Radial | 11.000" | 13.000" | 1" | Open | Brass |
| KG120CP0 | Radial | 12.000" | 14.000" | 1" | Open | Brass |
| KG140CP0 | Radial | 14.000" | 16.000" | 1" | Open | Brass |
| KG160CP0 | Radial | 16.000" | 18.000" | 1" | Open | Brass |
| KG180CP0 | Radial | 18.000" | 20.000" | 1" | Open | Brass |
| KG200CP0 | Radial | 20.000" | 22.000" | 1" | Open | Brass |
| KG220CP0 | Radial | 22.000" | 24.000" | 1" | Open | Brass |
| KG250CP0 | Radial | 25.000" | 27.000" | 1" | Open | Brass |
| KG300CP0 | Radial | 30.000" | 32.000" | 1" | Open | Brass |
| KG350CP0 | Radial | 35.000" | 37.000" | 1" | Open | Brass |
| KG400CP0 | Radial | 40.000" | 42.000" | 1" | Open | Brass |
| KG040XP0 | Four Point | 4.000" | 6.000" | 1" | Open | Brass |
| KG042XP0 | Four Point | 4.250" | 6.250" | 1" | Open | Brass |
| KG045XP0 | Four Point | 4.500" | 6.500" | 1" | Open | Brass |
| KG047XP0 | Four Point | 4.750" | 6.750" | 1" | Open | Brass |
| KG050XP0 | Four Point | 5.000" | 7.000" | 1" | Open | Brass |
| KG055XP0 | Four Point | 5.500" | 7.500" | 1" | Open | Brass |
| KG060XP0 | Four Point | 6.000" | 8.000" | 1" | Open | Brass |
| KG065XP0 | Four Point | 6.500" | 8.500" | 1" | Open | Brass |
| KG070XP0 | Four Point | 7.000" | 9.000" | 1" | Open | Brass |
| KG075XP0 | Four Point | 7.500" | 9.500" | 1" | Open | Brass |
| KG080XP0 | Four Point | 8.000" | 10.000" | 1" | Open | Brass |
| KG090XP0 | Four Point | 9.000" | 11.000" | 1" | Open | Brass |
| KG100XP0 | Four Point | 10.000" | 12.000" | 1" | Open | Brass |
| KG110XP0 | Four Point | 11.000" | 13.000" | 1" | Open | Brass |
| KG120XP0 | Four Point | 12.000" | 14.000" | 1" | Open | Brass |
| KG140XP0 | Four Point | 14.000" | 16.000" | 1" | Open | Brass |
| KG160XP0 | Four Point | 16.000" | 18.000" | 1" | Open | Brass |
| KG180XP0 | Four Point | 18.000" | 20.000" | 1" | Open | Brass |
| KG200XP0 | Four Point | 20.000" | 22.000" | 1" | Open | Brass |
| KG220XP0 | Four Point | 22.000" | 24.000" | 1" | Open | Brass |
| KG250XP0 | Four Point | 25.000" | 27.000" | 1" | Open | Brass |
| KG300XP0 | Four Point | 30.000" | 32.000" | 1" | Open | Brass |
| KG350XP0 | Four Point | 35.000" | 37.000" | 1" | Open | Brass |
| KG400XP0 | Four Point | 40.000" | 42.000" | 1" | Open | Brass |
