CRB CRBC Series Crossed Roller Bearing

CRBC crossed roller bearing standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body.

CRBC series( separatable outer ring and inner ring rotation),with cage and full complement with rollers,suitable for the parts where the inner ring require high rotate accurancy .

xq

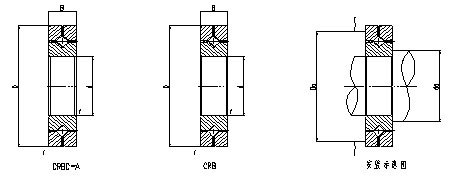

Bearing Number Dimensions
With cage Full Complement d mm D mm B mm
CRBC3010 CRB3010 30 55 10
CRBC4010 CRB4010 40 65 10
CRBC5013 CRB5013 50 80 13
CRBC6013 CRB6013 60 90 13
CRBC7013 CRB7013 70 100 13
CRBC8016 CRB8016 80 120 16
CRBC9016 CRB9016 90 130 16
CRBC10020 CRB10020 100 150 20
CRBC11020 CRB11020 110 160 20
CRBC12025 CRB12025 120 180 25
CRBC13025 CRB13025 130 190 25
CRBC14025 CRB14025 140 200 25
CRBC15025 CRB15025 150 210 25
CRBC15030 CRB15030 150 230 30
CRBC20025 CRB20025 200 260 25
CRBC20030 CRB20030 200 280 30
CRBC20035 CRB20035 200 295 35
CRBC25025 CRB25025 250 310 25
CRBC30025 CRB30025 300 360 25
CRBC30035 CRB30035 300 395 35
CRBC30040 CRB30040 300 405 40
CRBC40035 CRB40035 400 480 35
CRBC40040 CRB40040 400 510 40
CRBC40070 CRB40070 400    580  70
CRBC50040 CRB50040 500 600 40
CRBC50050 CRB50050 500 625 50
CRBC50070 CRB50070 500 680 70
CRBC60040 CRB60040 600 700 40
CRBC60070 CRB60070 600 780 70
CRBC600120 CRB600120 600 870 120
CRBC70045 CRB70045 700 815 12
CRBC70070 CRB70070 700 880 7
CRBC700150 CRB700150 700 1020 150
CRBC80070 CRB80070 800 950 70
CRBC800100 CRB800100 800 1030 100
