222xx Series

Spherical roller bearings can accommodate heavy loads in both directions. 22206 22207 22208 22209 22210 22211 22212 22213 22214 22215 22216 22217 22218 22219 22220 22222 22224 22226 22228 22230 22232 22234 22236 22238 22240 22244 22248 22256

Email: sales@kenworthbearing.com

WhatsApp:8613675315646

Phone: +86-13675315646

Keyword:

Spherical Roller Bearings

Category:

Spherical Roller Bearings

Online message

222xx Series

Spherical roller bearing with relubrication features.

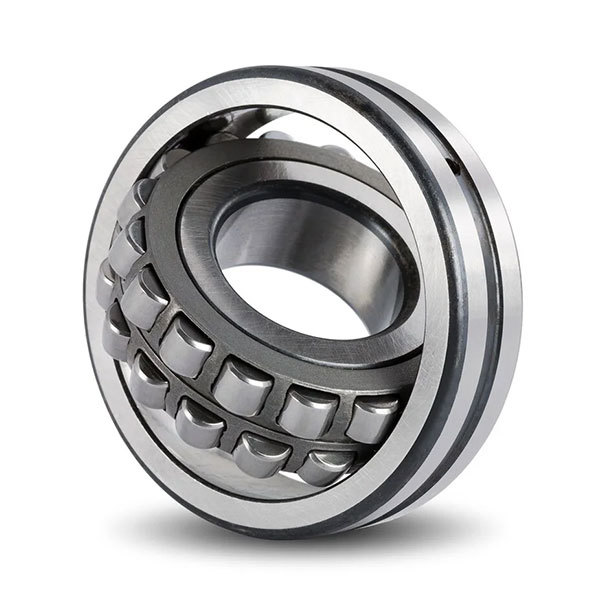

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Suffixes：

C-Spherical roller bearing with symmetrical rollers and floating central guide ring;

CA-Spherical roller bearing of C design but with two integral inner ring flanges and machined cage;

CC-Spherical roller bearing of C design but with improved roller guidance and reduced friction;

CAC-Spherical roller bearing of CA design but with improved roller guidance and reduced friction;

E-Standard spherical roller bearing with modified internal design, increased carrying capacity and W33 features;

J-Pressed steel cage;

K-Tapered bore, taper 1:12 on diameter;

K30- Tapered bore, taper 1:30 on diameter;

M- Machined brass cage ;

Bearing Number	d(mm)	D(mm)	B(mm)
22206	30	62	20
22207	35	72	23
22208	35	80	23
22209	45	85	23
22210	50	90	23
22211	55	100	25
22212	60	110	28
22213	65	120	31
22214	70	125	31
22215	75	130	31
22216	80	140	33
22217	85	150	36
22218	90	160	40
22219	95	170	43
22220	100	180	46
22222	110	200	53
22224	120	215	58
22226	130	230	64
22228	140	250	68
22230	150	270	73
22232	160	290	80
22234	170	310	86
22236	180	320	86
22238	190	340	92
22240	200	360	98
22244	200	400	108
22248	240	440	120
22256	280	500	130
