CRBF Series Full Compeletment Crossed Roller Bearing

CRBF face mount crossed roller bearing has a compact inner and outer ring, so it can provide high stiffness. CRBF108AT CRBF2012AT CRBF2512AT CRBF3515AT CRBF5515AT CRBF8022AT CRBF8022A CRBF8022AD CRBF9025AT CRBF9025A CRBF9025AD CRBF11528AT CRBF11528A CRBF11528AD CRBF108ATUU CRBF2012ATUU CRBF2512ATUU CRBF3515ATUU CRBF5515ATUU CRBF8022ATUU CRBF8022AUU CRBF8022ADUU CRBF9025ATUU CRBF9025AUU CRBF9025ADUU CRBF11528ATUU CRBF11528AUU CRBF11528ADUU

Email: sales@kenworthbearing.com

WhatsApp:8613675315646

Phone: +86-13675315646

Keyword:

Crossed Roller Bearings

Category:

Crossed Roller Bearings

Online message

CRBF Series Full Compeletment Crossed Roller Bearing

CRBF face mount crossed roller bearing has a compact inner and outer ring, so it can provide high stiffness. Bedides, bearings performance is minimally affected by the mounting procedure. And with mounting holes on the inner and outer ring end face. the CRBF crossed roller bearing can fixed to the related parts directly, even without the housing or fixing plate.

xq

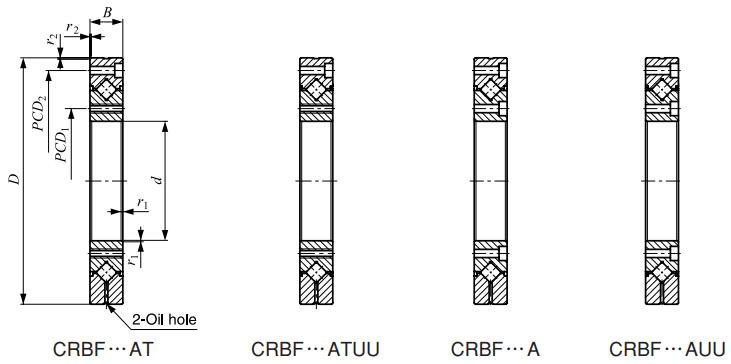

Bearing Model Number Dimensions
Open Type Sealed Type d mm D mm B mm
CRBF108AT CRBF108ATUU 10 52 8
CRBF2012AT CRBF2012ATUU 20 70 12
CRBF2512AT CRBF2512ATUU 25 80 12
CRBF3515AT CRBF3515ATUU 35 95 15
CRBF5515AT CRBF5515ATUU 55 120 15
CRBF8022AT CRBF8022ATUU 80 165 22
CRBF8022A CRBF8022AUU 80 165 22
CRBF8022AD CRBF8022ADUU 80 165 22
CRBF9025AT CRBF9025ATUU 90 210 25
CRBF9025A CRBF9025AUU 90 210 25
CRBF9025AD CRBF9025ADUU 90 210 25
CRBF11528AT CRBF11528ATUU 115 240 28
CRBF11528A CRBF11528AUU 115 240 28
CRBF11528AD CRBF11528ADUU 115 240 28
